InverSmart 16kw Inverter Swimming Pool Heat Pump + Wi-Fi - Full Inverter - H2oFun.co.uk

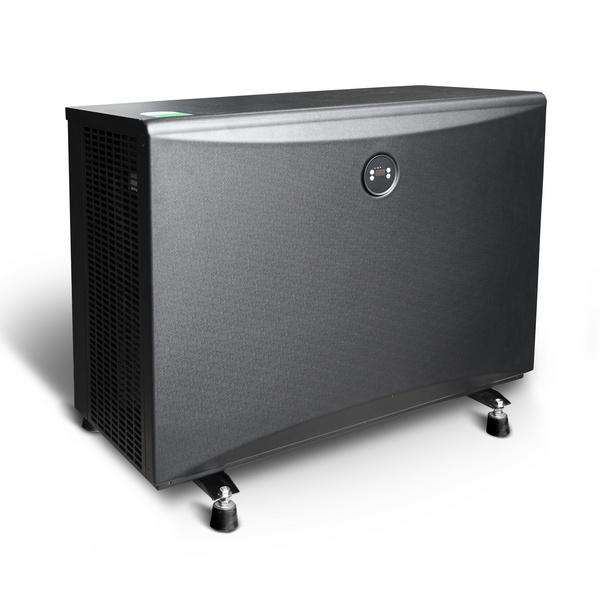

InverSmart 16kw Inverter Swimming Pool Heat Pump + Wi-Fi - Full Inverter

CODE: 34964

  • InverSmart 16kw Inverter Swimming Pool Heat Pump
  • 1.2kw Input Provides Up To 16kw Output
  • Full Stepless Inverter Mitsubishi Compressor
  • Patented Unique Front Air-Stream Fanless Design
  • Wi-Fi App Controlled
  • All Year Round Pool Heating Option - Call For Sizing
  • We Price Match & Have Stock For Same Day Despatch

DELIVERY: InverSmart 16kw Swimming Pool Heat Pumps are delivered by specialist hauliers and can take between 1-3 days for delivery

RETURNS: InverSmart 16kw Swimming Pool Heat Pumps can be returned unused, in original packaging, suitable for resale, within 14 days from date of delivery. Returns should be sent via a "Signed For" carrier or post.

When we receive the item, our returns department confirm that everything is present and in its in original condition to ensure its eligibility for refund. We process refunds as quickly as possible. We process most refunds on the same day which they were received, but please allow up to a maximum of 14 days for the money to reach your account. It rarely takes this long, but can happen sometimes for reasons such as bank delays or errors.


InverSmart 16kw Swimming Pool Heat Pumps are Stepless Full Inverter Heat Pumps, unlike other Inverter heat pumps available in the UK, which are part Stepped Inverters offering only three settings.

The InverSmart 16kw Swimming Pool Heat Pump uses Stepless DC Full Inverter technology in the Mitsubishi Compressor as well as a Brushless DC Fan Motor that allows for incomparable energy savings when put up against other heat pump brands.

Heat Your Pool From Only 18p Per Hour With An InverSmart 16kw Stepless Inverter Heat Pump

inverter smart inverter swimming pool heat pump

The 16kw InverSmart Swimming Pool Heat Pump has an extremely high C.O.P. of up to 13, which means that it only requires between 8% - 20% of the power output provided to power the compressor and fan, meaning that in the main Summer months the InverSmart Heat Pump could be running at an input of only 1.2kw whilst outputting an amazing 16kw. This means running costs can be less than 18p per hour to heat a 30ft x 15ft swimming pool, which means the InverSmart Heat Pump is the cheapest way to heat a swimming pool.

Environmentally Friendly Swimming Pool Heating

The 16kw InverSmart Swimming Pool Heat Pump uses the more environmentally friendly R32 Refrigerant gas rather than the older R410A gas used by other heat pumps. Not only is this better for the environment, but also provides a higher energy output and heat production whilst using less gas. It costs more than the cheaper R410A gas, but the R32 gas allows the 16kw InverSmart Swimming Pool Heat Pump to achieve its amazing output.

InverSmart Swimming Pool Heat Pump Features & Improvements

  • High C.O.P. of 13
  • Stepless Full DC Inverter
  • As Quiet As A Fridge
  • As Litle As 15p Per Hour To Run
  • Wi-Fi App Controlled
  • Mitsubishi Compressor
  • Twisted Titanium Heat Exchanger
  • Patented Air-Stream Design
  • Anti Rust ABS & Aluminium Alloy Casing
  • R32 Gas
  • Electronic Expansion Valve
  • Hot Gas Defrost

Cheaper & Quieter Swimming Pool Heating With An Inversmart Heat Pump

One of the advantages that the Inversmart 16kw Swimming Pool Inverter Heat Pump has over its competition is the extremely low running costs and the ultra-quiet operation, as quiet as a fridge in the ultra-efficient mode. This is because it has a Full, Stepless Inverter. There are three types of Swimming Pool Heat Pump, an On/Off model, which as you would expect, can only be turned on and off with the compressor and fan only running at one fixed speed. These are the noisiest and also the most expensive heat pump to run. The next option available on swimming pool heat pumps is a "Stepped Inverter". This is where the inverter has Three available settings, "Standard", the same as an On'Off heat pump, used when opening your pool and for the colder periods, "Smart" mode where the inverter will change between three available options to maintain pool temperature and "Silent" mode which is used during warmer Summer days and is the most economical mode. These modes have to be chosen manually so the heat pump may not be functioning at its optimum level for the ambient air temperature.

The "Full Stepless Inverter" on the InverSmart Inverter Swimming Pool Heat Pump will change between all of these settings seamlessly always providing the maximum heat output at the lowest possible cost.

Highest Quality Components In A Heat Pump For Pools

The Inversmart Inverter Swimming Pool Heat Pump has the "Holy Grail" of high-quality components that you should be looking for when buying a heat pump for pools, a Mitsubishi Compressor, its Twisted Titanium Heat Exchanger and its ultra-effective Patented Air Stream Design, drawing air from the side and exhausting via the rear.

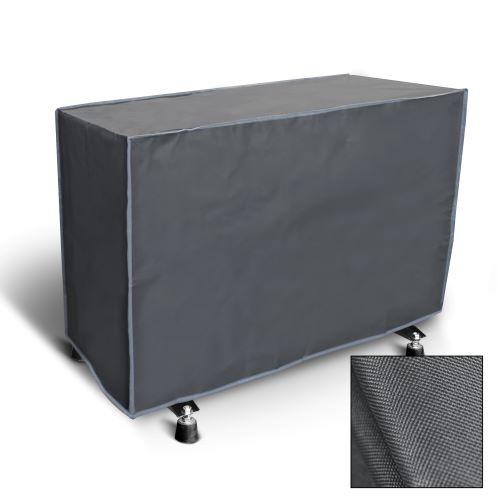

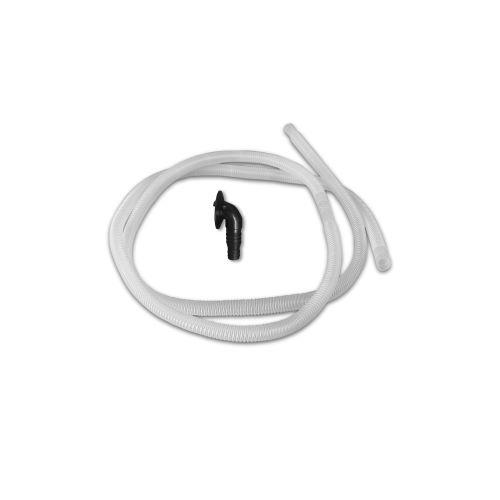

The Inversmart Inverter Swimming Pool Heat Pump Is Supplied With Winter Cover & Condensation Ducting Tubes
How To Choose The Right Size Heat Pump For Your Swimming Pool
We provide suggestions for pool sizes given by the manufacturer, but the size of your heat pump will depend on location in the UK, position that the heat pump is sited, desired water temperature, the number of hours bathing and the type of swimming pool you have, whether above ground or inground and if it is insulated. This can be a very difficult choice if you are not sure of the limitations of a heat pump, but we have over 15 Years of experience, with many thousands of happy customers running our heat pumps on their pools, so we are extremely proficient in helping you choose the ideal heat pump for your swimming pool.
If you would like help or advice sizing your heat pump for your pool please call us on 01322 554 870


InverSmart 16kw Heat Pump


Air 27°C/ Water 27°C/ Humidity 80%


Heating Capacity (KW)


COP Range

15.0 ~ 6.5

Average COP At 50% Speed



Air 15°C/ Water 26°C/ Humidity 70%

Heating Capacity (KW)


COP Range

7 ~ 4.5

Average COP At 50% Speed



Suggested Pool Volume 40m3 - 75m3
Operating Air Temperature  Air -5°C ~ 40°C
Compressor Twin-Rotary Mitsubishi DC Compressor
Casing ABS & Aluminium Alloy
Heat Exchanger Twisted Titanium Heat Exchanger
Power Supply 230V ~ 1Ph
Rated Input Power 0.39kw ~ 2.5kw
Input Power At 50% Speed 0.88kw
Rated Input Current 1.7A ~ 10.7A
Sound Level At 10m dB(A) 21.2 dB(A) ~ 34.4 dB(A)
Sound Level At 1m dB(A) 41.2 dB(A) ~ 54.4 dB(A)
Sound Level 50% Speed At 1m dB(A) 45.9 dB(A)
Advised Water Flow Rate 6m3 ~ 8m3
Water Connection 50mm / 1.5"
Dimension (L x W x H) 890mmx 440mm x 658mm
Weight  57kg
